Name: External Rinse Unit
Brand: AquaLine Units by Güçlü Makine Ltd.
Price: 11000.00 EUR
Availability: InStock

External Rinse Unit

€11.000,00

📞 Request a Quotation & Discount

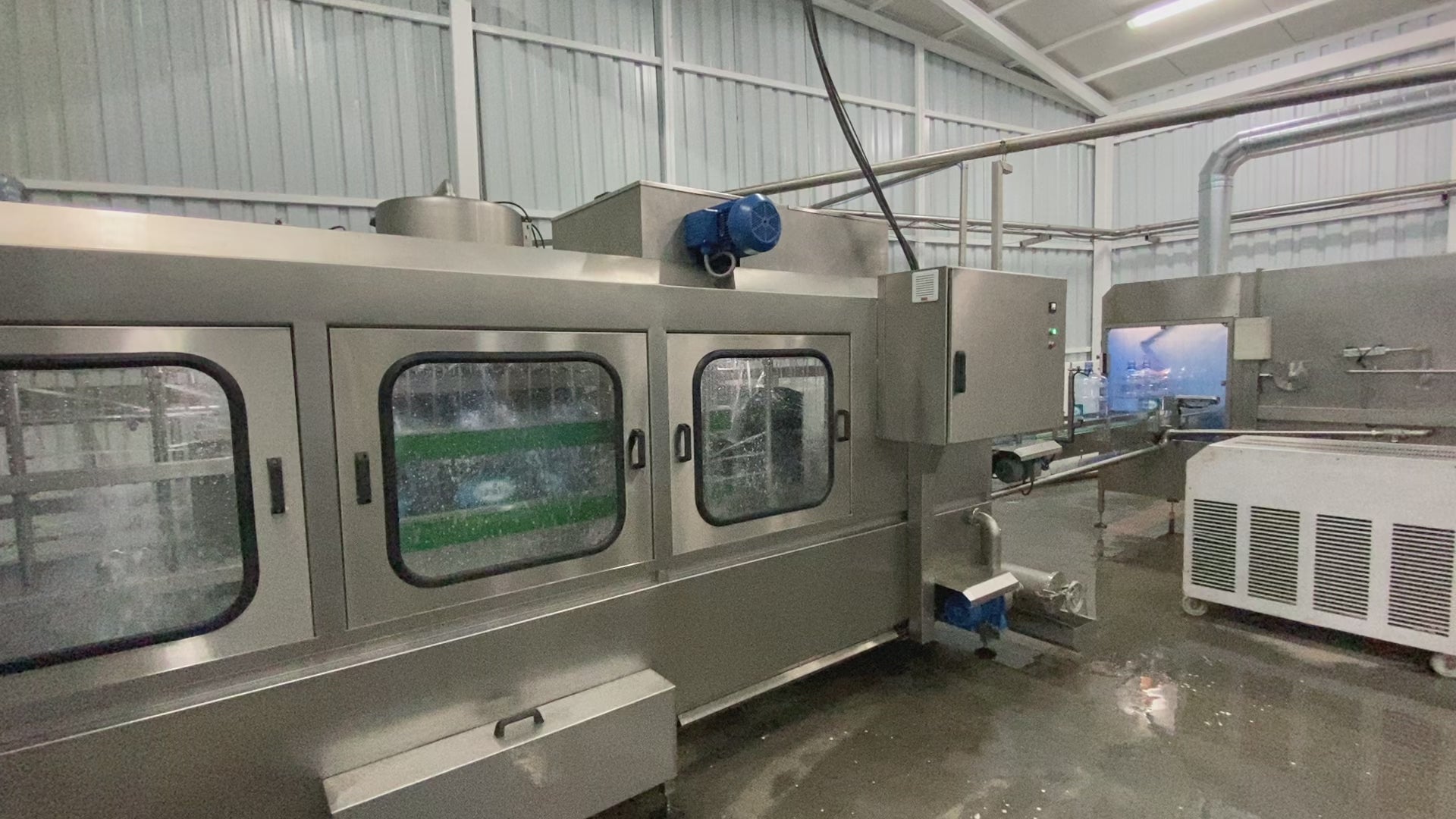

The External Rinse Unit is an auxiliary cleaning module designed to wash the outer surface of returned 19L / 23L polycarbonate or glass gallon bottles before internal washing and filling.
It ensures full hygiene by removing dust, residues, and labels from the bottle exterior — a critical step for high-quality bottled water production.

⚙️ Technical Specifications

Specification	Detail
Primary Material (Contact Parts)	AISI 316 Stainless Steel (Food-Grade)
Body & Frame	AISI 304 Stainless Steel
Operation System	High-pressure multi-nozzle water spray
Water Source	Tap or filtered water, optional hot-water line
Water Temperature	Ambient or 40–60°C preheated
Capacity	300 – 2400 bottles/hour
Control Panel	PLC + Manual mode selector
Power Supply	220–380V, 50–60Hz
Certifications	CE, ISO 9001, Food Contact Approved

💼 Key Advantages

100% hygienic surface cleaning before internal washing
Constructed entirely with AISI 316 contact surfaces
Reduces contamination risk and extends machine lifespan
Modular design compatible with existing conveyors
Easy to integrate, low maintenance, and water-efficient

🧩 Compatibility

Line Type	Compatible Models
Polycarbonate Lines	PC-1500, PC-2400
Hybrid Lines (PC + Glass)	HY-1200
Glass Lines	Optional (custom version available)

💰 Pricing

€11,000

(Ex-Works Istanbul, excludes installation and logistics. Optional assembly & training available.)

🔧 Material & Build Quality

AquaLine Units equipment follows the Güçlü Makine manufacturing standard:

All food-contact surfaces are made from AISI 316 stainless steel
Outer frames and supports use AISI 304 for structural stability
All components are CNC fabricated, TIG welded, and mirror polished (Ra < 0.8 µm)
Electronic components are Schneider / Siemens or equivalent EU-grade parts

📦 Shipping & Installation

Delivery: Ex-Works Istanbul, Türkiye
Packaging: Foam padding + wooden crate + plastic stretch wrap
Lead Time: 6–8 weeks after advance payment
Installation: On-site or remote technical setup available

🛠️ Warranty & Support

Warranty: 1 Year (manufacturing defects)
After-Sales Service: Global remote + on-site support
Spare Parts: Supplied directly from Türkiye
Support Line: +90 532 224 91 98 (WhatsApp)

All AquaLine Units systems are shipped under EXW Istanbul (Ex-Works) terms.

Packaging includes foam padding, wooden crate, and stretch wrap for maximum protection during transport.

We assist clients with international logistics, customs documentation, and optional insurance via DHL, FedEx, or sea freight.

Delivery time: 10–12 weeks after confirmed down payment.

🏭 Local pickup and global delivery options available.

Each system is custom-built and project-specific.

Therefore, returns, refunds, and cancellations are not accepted after production has started.

All parts in contact with water are made of AISI 304 or 316 stainless steel.

Non-contact frames and covers are aluminum or galvanized steel with anti-corrosion coating.

Hoses and fittings are food-grade and BPA-free.

Electrical systems use PLC + HMI automation with CE safety standards.

🔧 Designed for long-term industrial operation and hygienic production.

Routine maintenance is required to ensure continuous operation:

CIP (Cleaning-in-Place) recommended weekly

Lubricate mechanical moving parts monthly

Inspect filters and water lines every 3 months

Replace seals & gaskets annually

Service and spare parts support are available worldwide.

🧰 Preventive maintenance contracts available upon request.

Each line is covered by a 1-year manufacturer’s warranty against production defects.

On-site installation, commissioning, and operator training are provided by Güçlü Makine technicians.

Remote technical assistance via WhatsApp or video call is available.

Optional long-term maintenance contracts can be arranged.

📞 For service inquiries: +90 532 224 91 98 | aqualineunits@gmail.com

CE certified manufacturing

Emergency stop buttons on all main units

Transparent protection covers on high-speed areas

Electrical compliance: EN 60204-1

Food contact materials meet EU and FDA standards

⚠️ Operator training is mandatory before running the system.

Our technical team provides full setup and operator training on-site.

Installation time depends on line capacity and factory layout (average 3–5 days).

A complete FAT (Factory Acceptance Test) is done before shipment,

and a SAT (Site Acceptance Test) after installation.

🚀 Turnkey commissioning service available worldwide.
